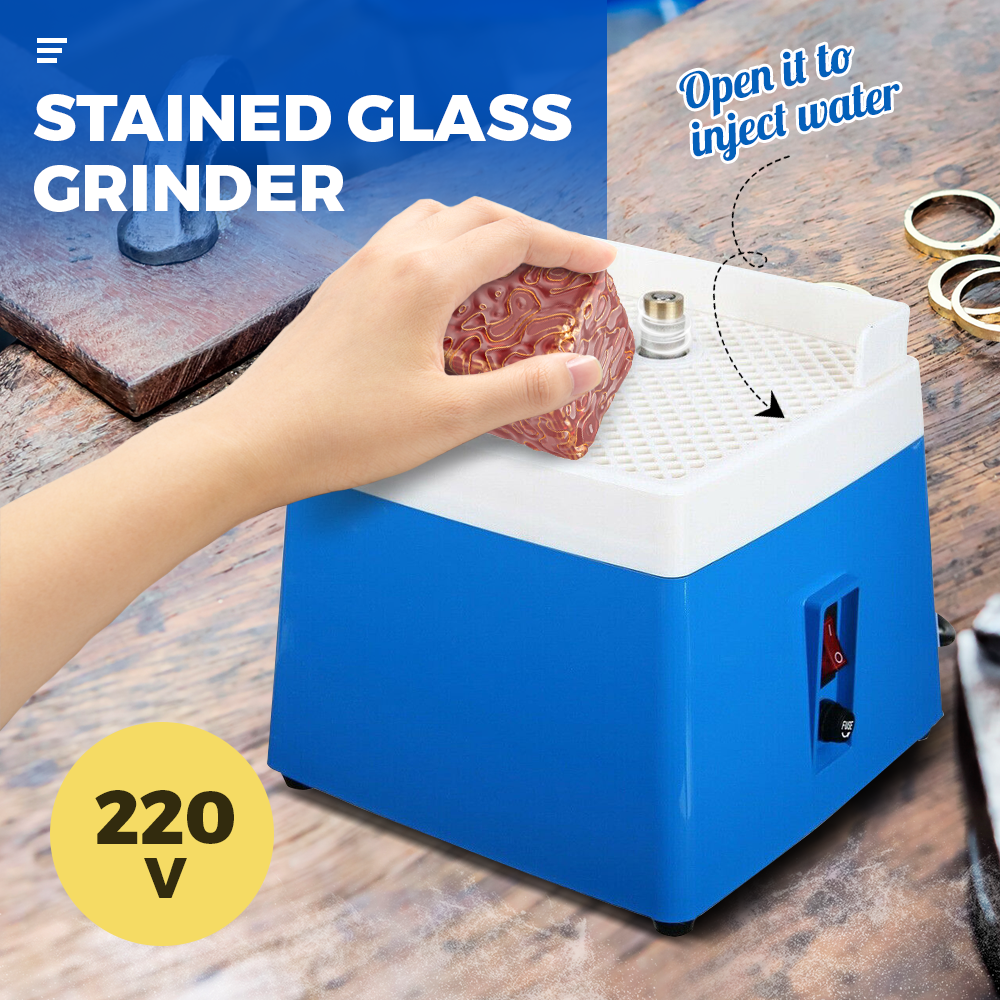

Portable Stained Grinders Glass Mini Power Industrial Glass Ceramics Grinder Grinding Tool w/Diamond Grinder Guard Tray Art Grinding Tool Blue 220V AU Plug

Save 40%
filler

Price:
Sale price$119.00 Regular price$199.00

Description

__

IMPORTANT NOTE: Please__clean__up__the__machine__and__the__grinding__bits__after__used, and__keep__it__dry! Otherwise,the__grinding__bits__might__get__rusted__and__can't__be__removed.


Features:

1. Easy operation,automatic Stained.
2. Stable and reliable performance.
3. Dents switch design, avoid the leakage.
4. For grinding hard brittle materials glass, ceramics etc.

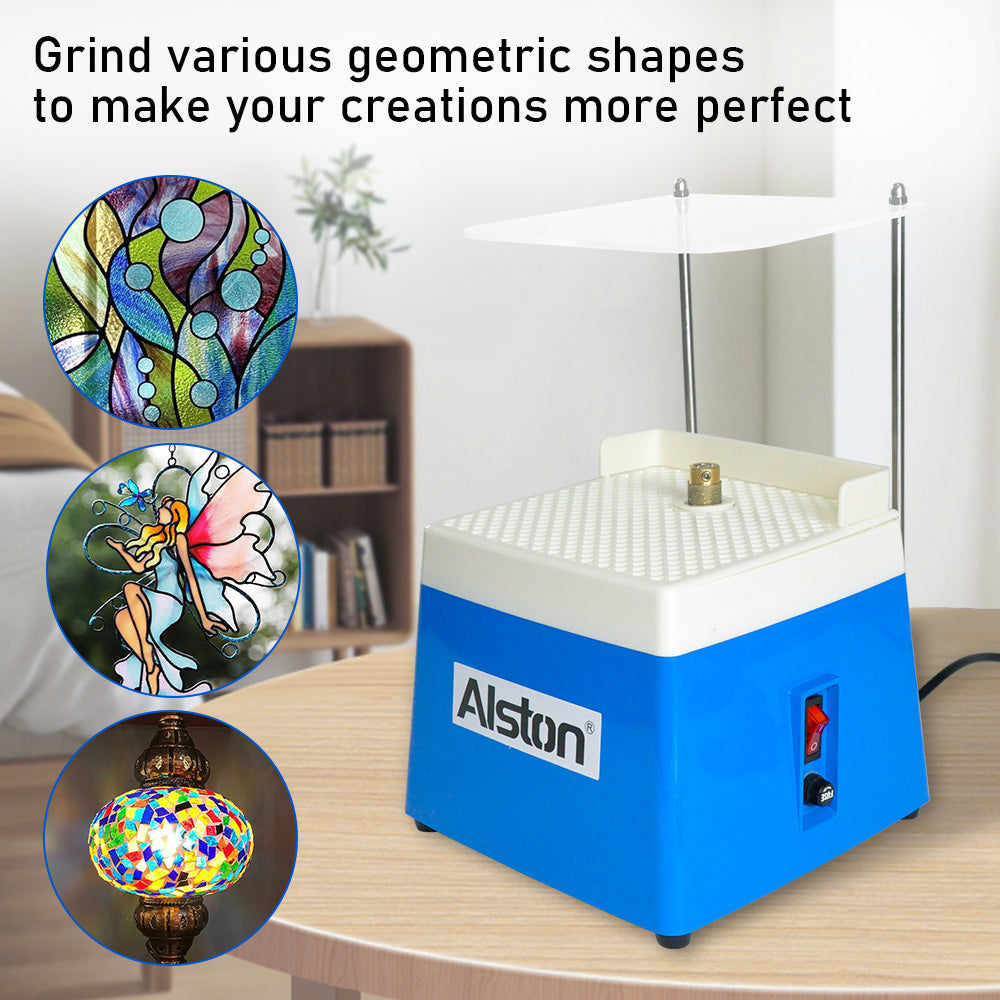

5. Grinding variety of geometric shapes: plane, curve, rounded corners, slope, etc.


Specification:

Model: MD902-AU
Colour: Blue White
Plug: AU Plug
Speed: 4200r/min
Voltage: AC 220V, 0.1A or 110V
Working table size: 165x165 mm/6.5" x 6.5"
Machine size: 195x195x160 mm/7.7" x 7.7" x 6.3"
Fits for: MCBL1,MCBL58

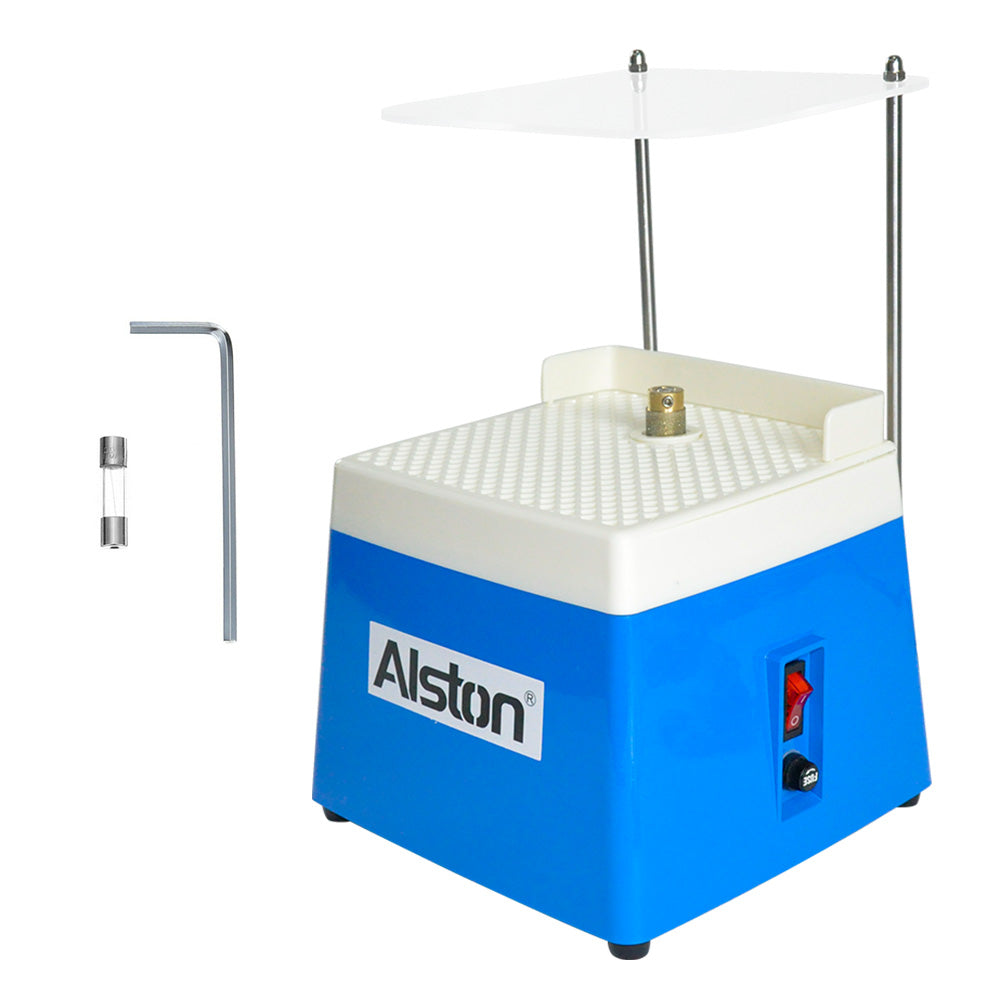

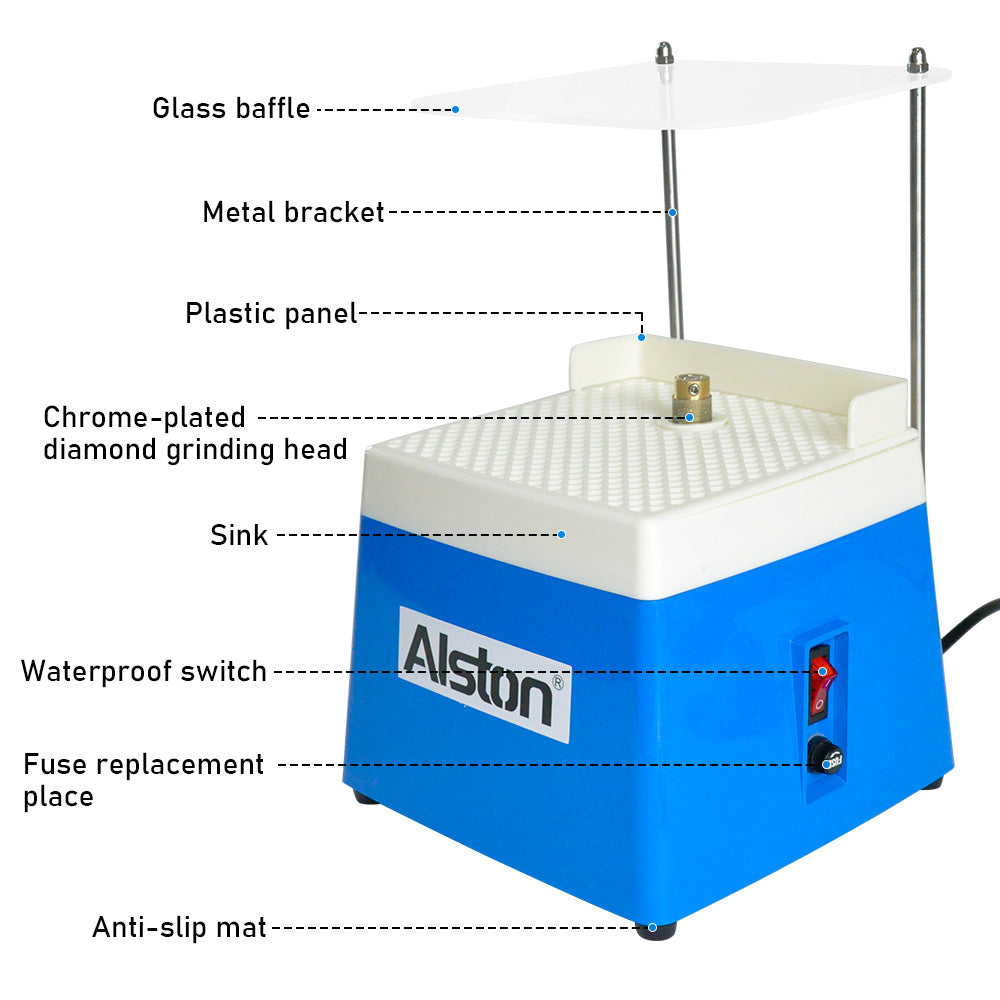

Content:__

1 x Glass Grinder

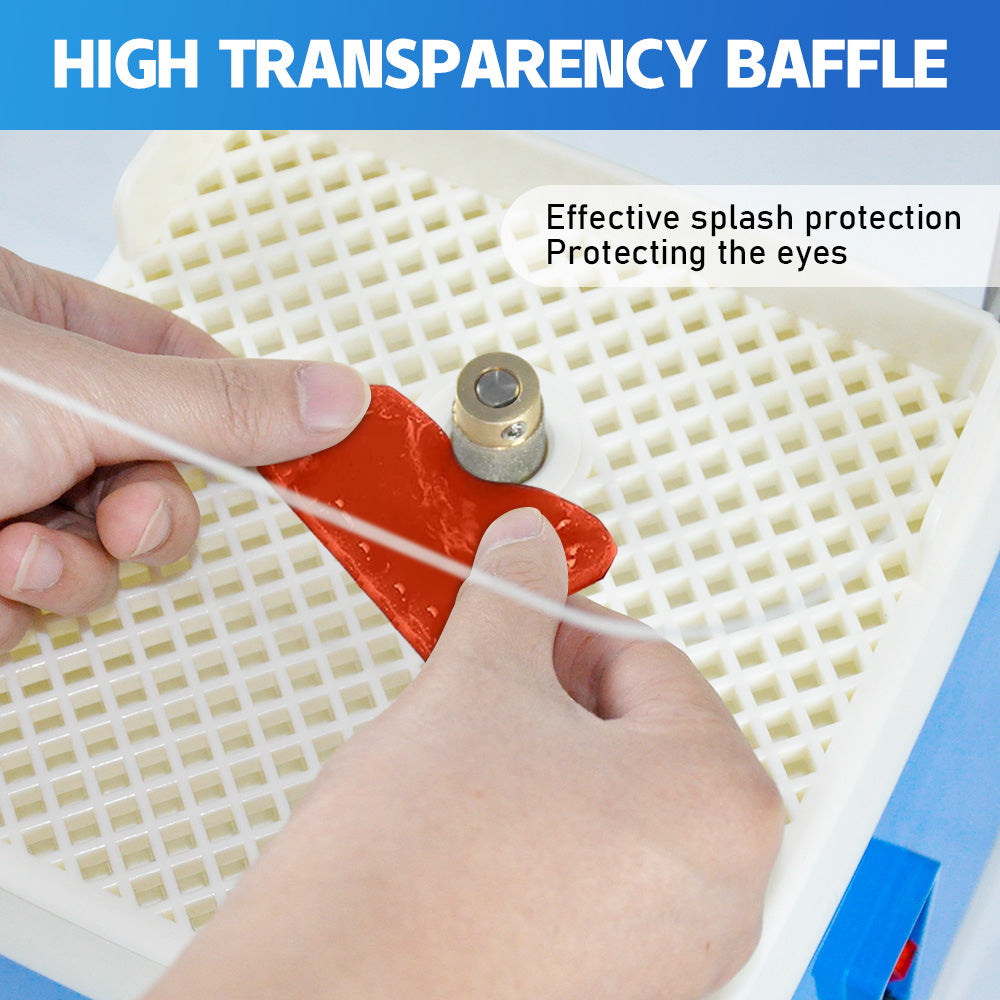

1 x Baffle
1 x Bracket

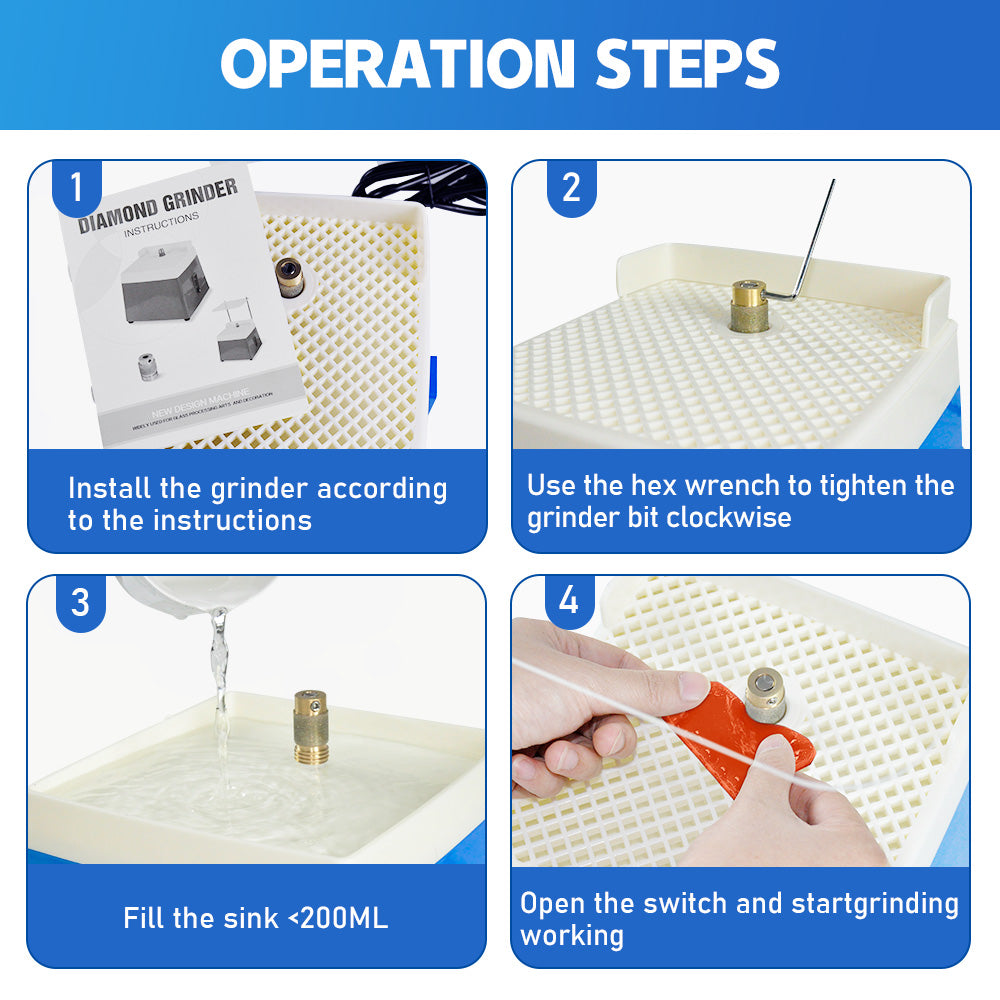

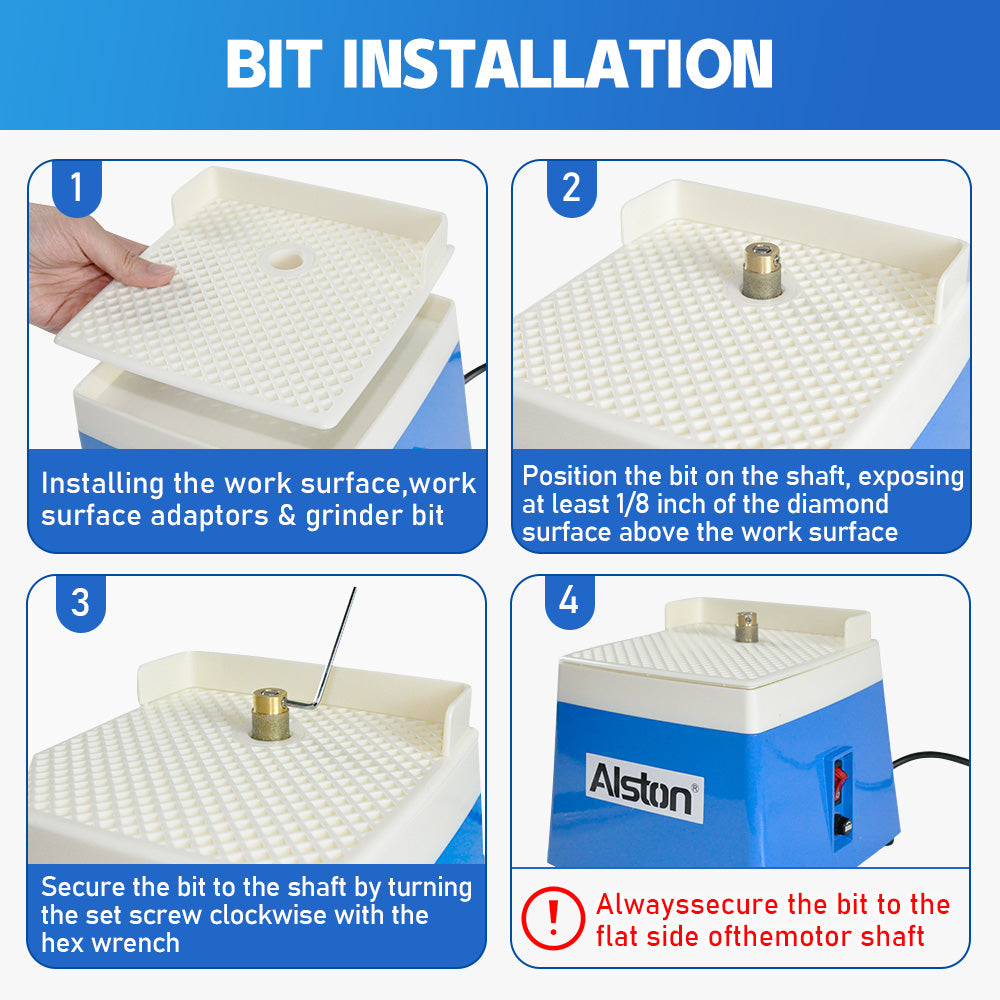

Grinding wheel installation:
1. Before installation of grinding wheel, topped with lubricant, engine shaft grinding wheels need to apply a layer of lubricant inside.

2. The grinding wheel mounted to the engine shaft, the fixed screw position higher than the engine shaft. The position of the grinding
wheel on the axle must be at least 1/8" diamond part above the operating table.

3. Fixed grinding wheel on the shaft with hexagonal wrench clockwisely.

Note: Maintain stability of the grinding wheel installed in the engine shaft of the plane.


Notes:

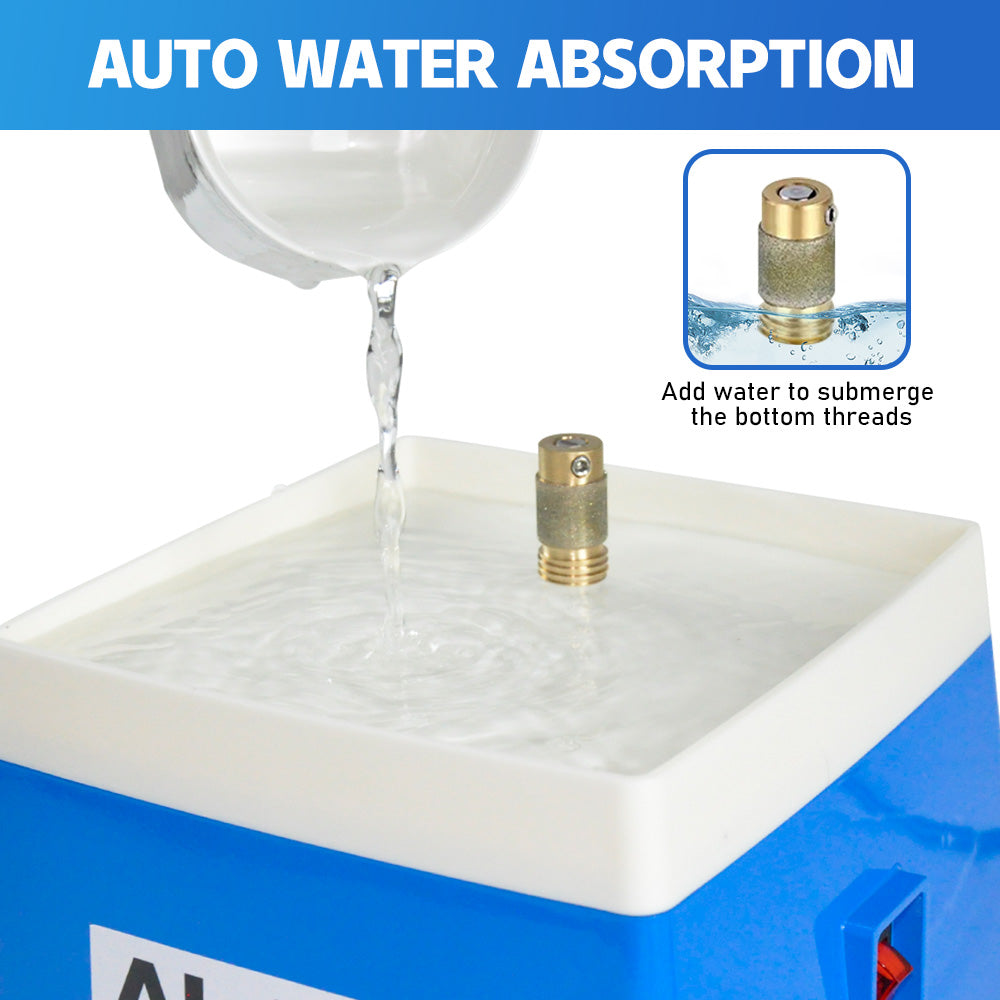

1. Can not grind without water. Make sure the grinding wheel is wet.

2. When using the grinding wheel, the strength is small, and if the strength is too high, the service life of the grinder and the grinding wheel will be reduced.

3. After use, clean the reservoir. Remove the reservoir and clean up the remaining residue after grinding.

4. In order to prolong the service life of the grinder, clean the engine shaft and add lubricating oil. After each use for 25 hours, remove all the grinding wheels and fixing screws.

5. If the grinding wheel is not used for more than a week, it needs to be polished on the table to prevent the straight shaft from jamming.

6. Do not grind metal. If you grind metal, the grinding wheel will be damaged, making it impossible to grind glass.

This will help you develop the habit of checking the engine shaft and wheel retention.
