Description
Description:
The CB-925 is a versatile 10-meter band ultra-thin radio station designed for seamless communication in the frequency range of 25.6~30.1MHz.

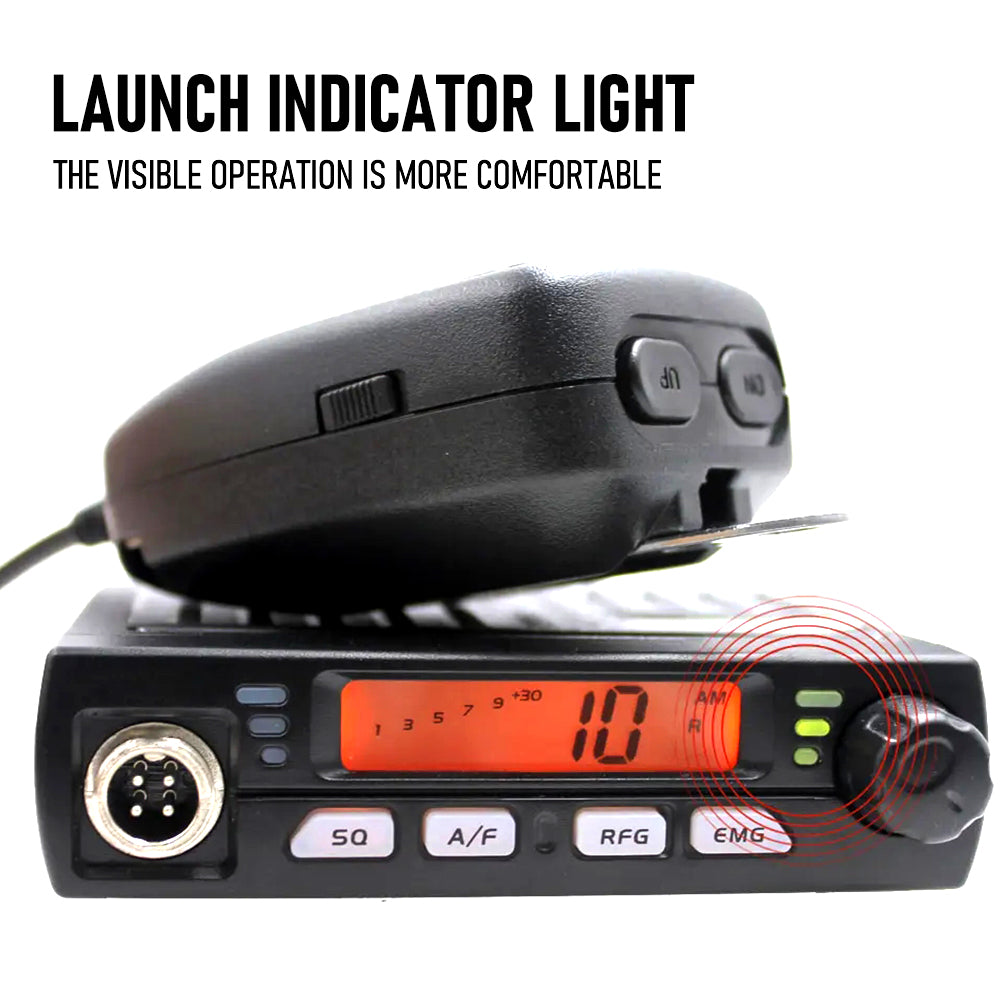

Its LCD display, ergonomic design, and crystal head interface make it an ideal choice for both professional and recreational use.
Features:
-
Power On/Off:
- Rotate VOL clockwise to power on. The LCD screen displays the current frequency and then the channel number.
- Rotate VOL counterclockwise to power off. The machine turns off when a clicking sound is heard.
-
Volume Control:
- Clockwise rotation increases volume, counterclockwise decreases volume.
-
Channel Switching:
- Short press UP or DN buttons to switch channels.
- Long press UP or DN for rapid channel selection.
-
SQ (Squelch) Adjustment (Selectable from OF to 2.8):
- Short press SQ until LCD displays SQ, then XX. XX indicates the current squelch level, with higher values representing higher squelch levels.
- Short press UP or DN to change squelch level.
- Long press UP or DN for quick squelch level changes.
- Hold SQ or wait for 3 seconds to save and exit.
-
ASQ (Automatic Squelch) Adjustment (Selectable A.1-1.9):
- Hold SQ until LCD displays ASQ. ASQ functionality opens, displaying A.X, where X represents the ASQ level.
- Short press microphone UP or DN to change SQ level.
- Hold microphone UP or DN for quick ASQ level changes.
- Hold SQ or wait for 3 seconds to save and exit.
-
AM/FM Mode Switching:
- Short press A/F key to toggle between AM and FM modes. The selected mode is displayed on the LCD.
-
RF Gain Control:
- Short press RFG key. LCD displays R and flashes the RF gain level.
- Short press microphone UP or DN to change levels.
- Short press RFG key to exit RF gain level selection.
- Note: When RF gain function is enabled, LCD displays R. RF gain level is 6, increasing or decreasing by 6 each time.
-
Emergency Channel:
- If the current channel is CH9, short press EMG key to make CH19 flash on the screen.
- If the current channel is not CH9, short press EMG key to make CH9 flash on the screen.
- Short press EMG key again to return to the current channel.
-
Key Lock:
- Hold EMG key for over 2 seconds to lock keys. LCD displays LC.
- Hold EMG key again for over 2 seconds to unlock keys. LCD displays OF.
- Note: In lock mode, all keys are invalid except PTT.
Scan Function:
- Hold A/F key for 2 or more seconds to start scanning. LCD displays SC.
- During scanning, hold UP or DN to change scan direction.
- Hold PTT to exit scan function.
- Frequency Band Selection:
- Hold A/F key without releasing, then power on. LCD displays the frequency band number.
- Press UP or DN to select the desired frequency band.
- Power off and on again.
- High/Low Power Selection:
- Hold RFG key and PTT key while powering on.
- Press UP or DN to select the desired power, with a maximum of 8W and a minimum of 4W.
- Power off and on again.

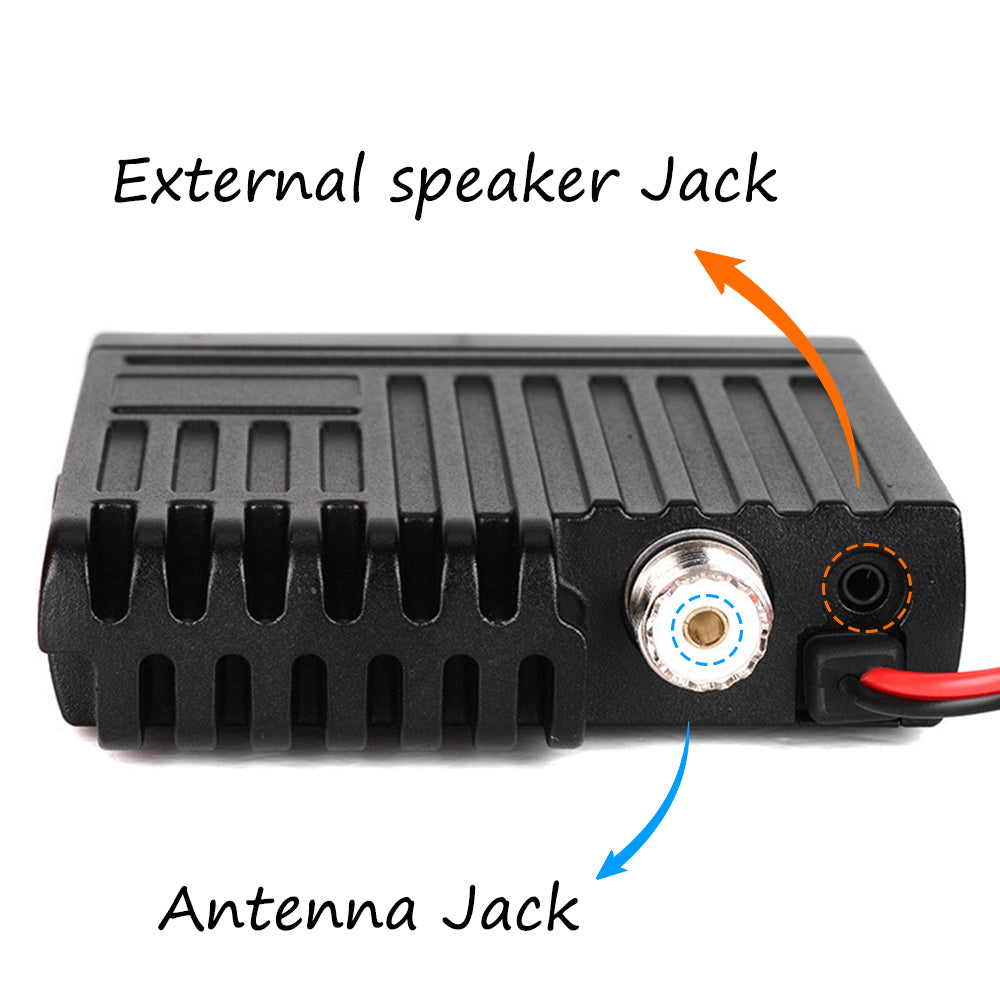

- External Speaker Installation:
- Choose an 8_© external speaker with a 3.5mm jack.
- Factory Reset:
- Hold SQ key + power on until LCD displays, then release the key.
- After the above operation, all channel and function settings will be restored to factory defaults.
- Note: OP1 grounded, the restored frequency band is DE band. OP2 grounded, the restored frequency band is HD band. OP1 and OP2 grounded, the restored frequency band is EU band.
