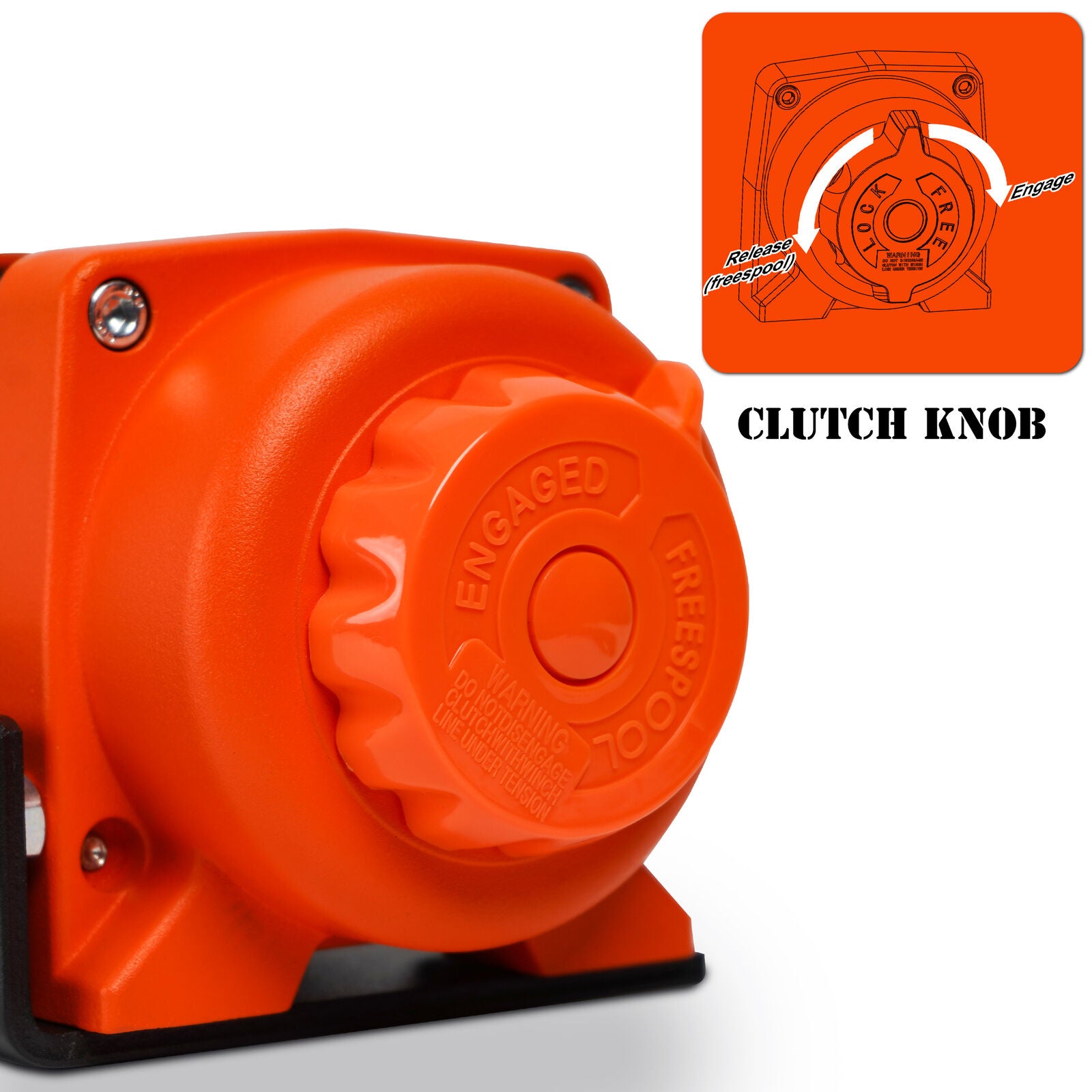

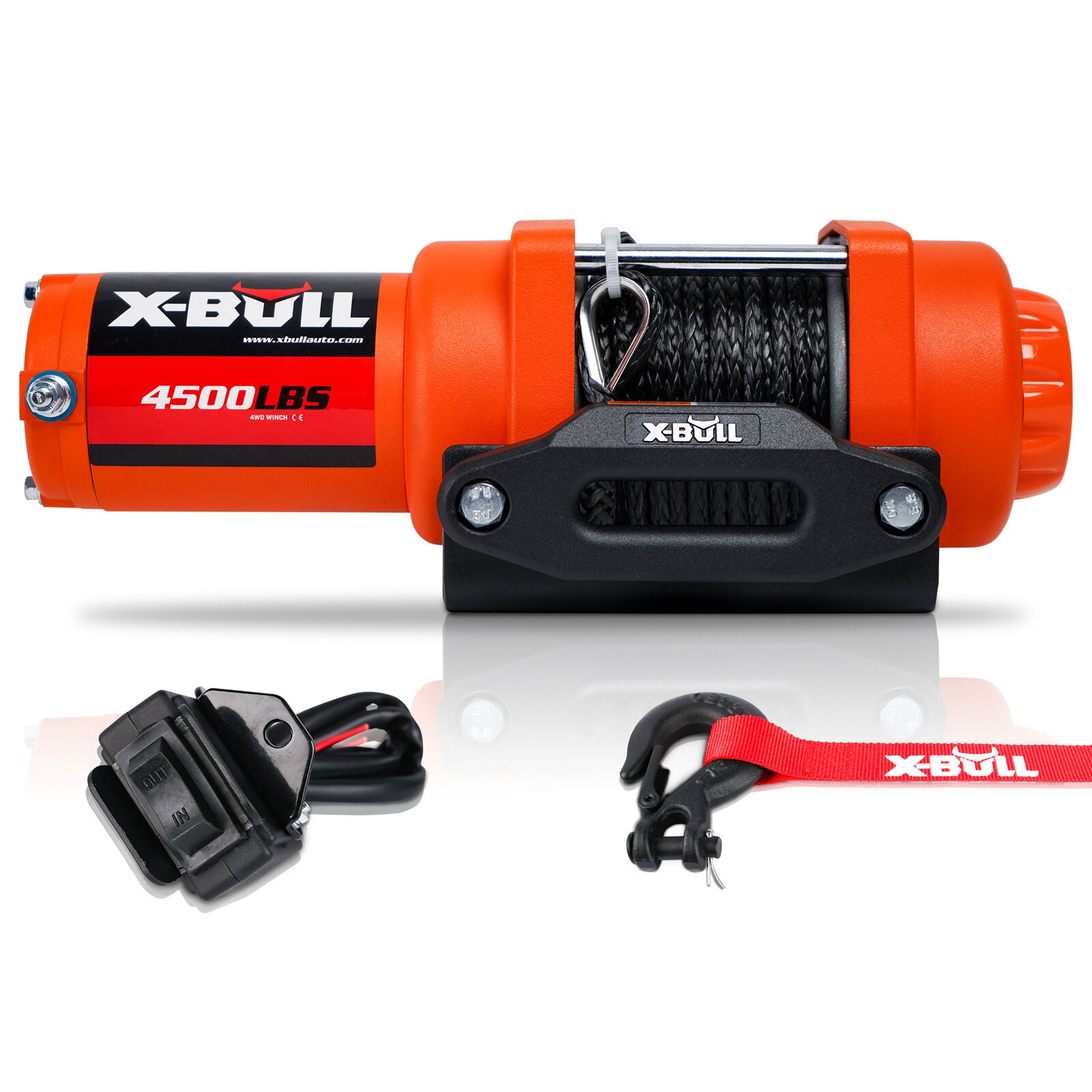

The X-BULL 4500lbs is one of our new X-BULL high-efficiency winches 3.0 series for all off-road and l ife-loving customers in 2021. Over the past few years, we document the product issues, needs and rec- ommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 4500lbs uses the stronger 500A relays on the market. We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.
Details
Motor
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

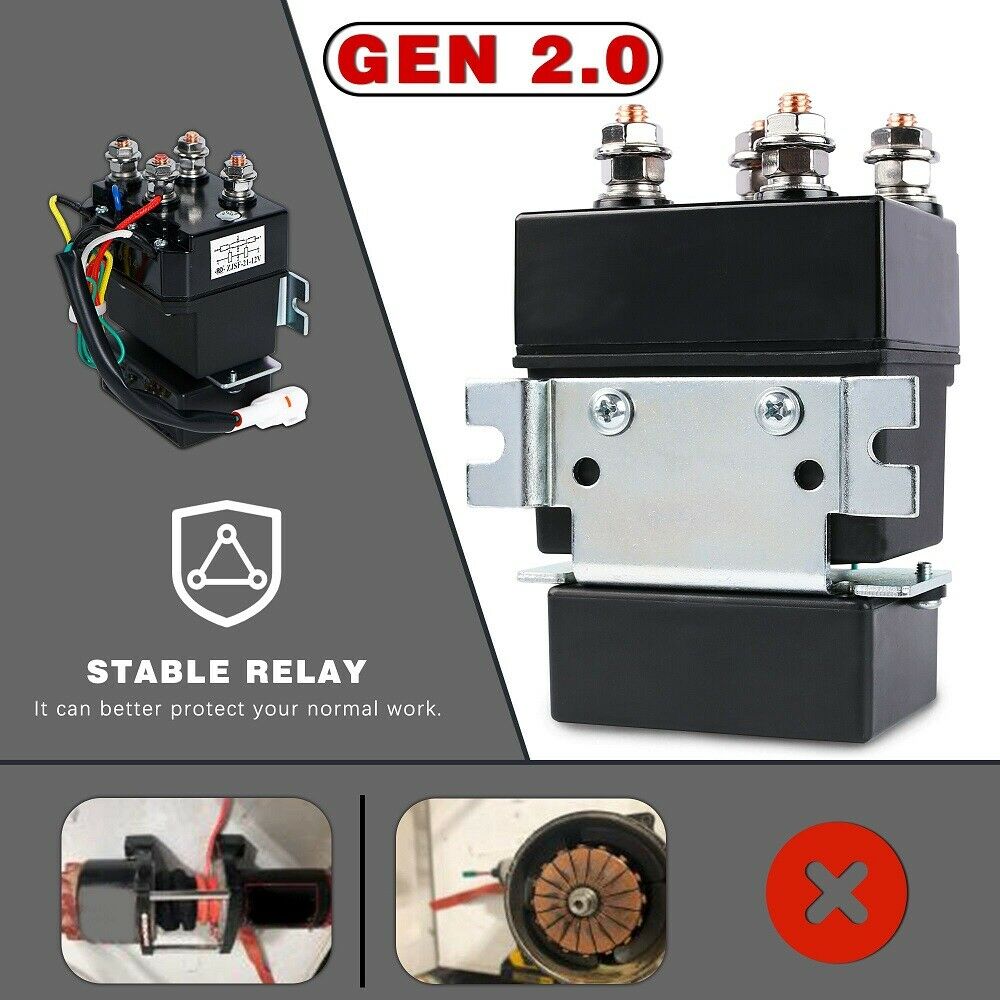

Winch Solenoid Relay
Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches,not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.
3-Stage Planetary
The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio,which can achieve coaxial deceleration (growth).
Specifications
Rated Single Line Pull: 4500lb.(2041kg)

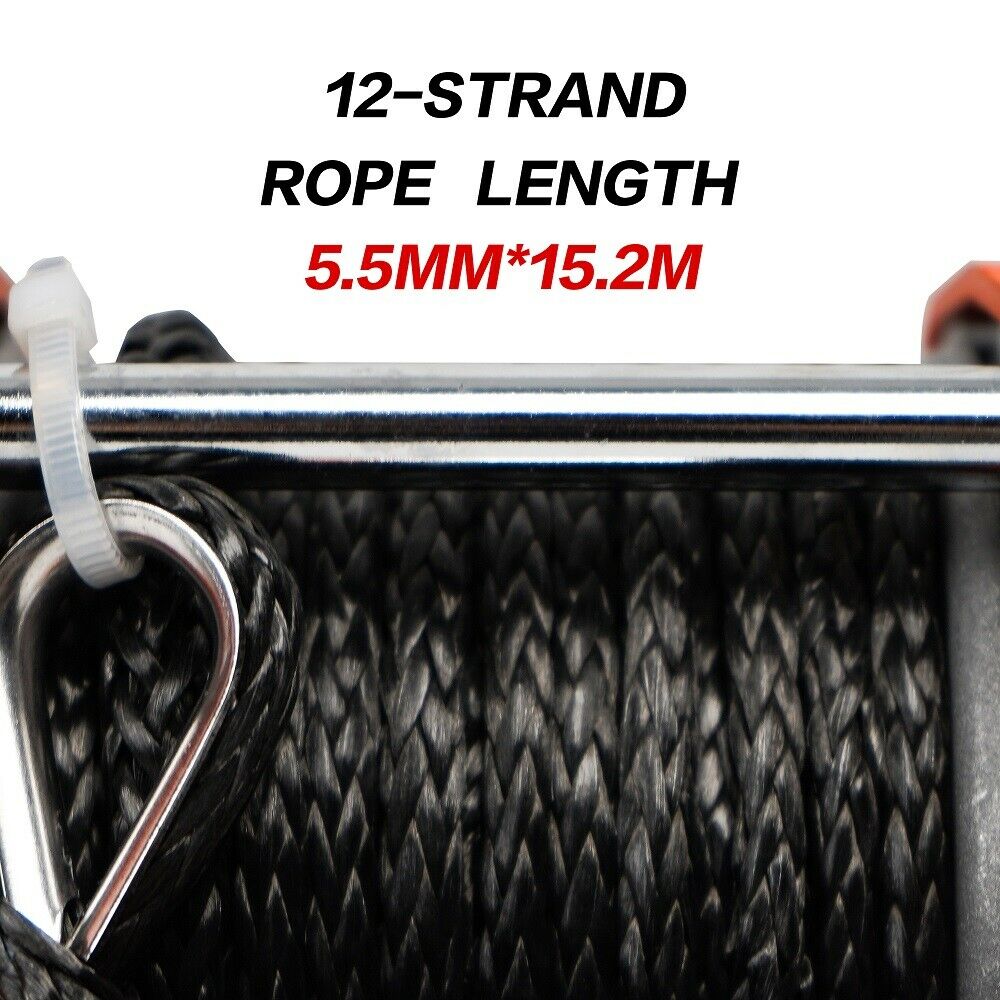

Wire Rope: 5.5mmx15.2m
Winch Certification: CE
Battery: 12VDC, Minimum 12Ah
Duty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest)

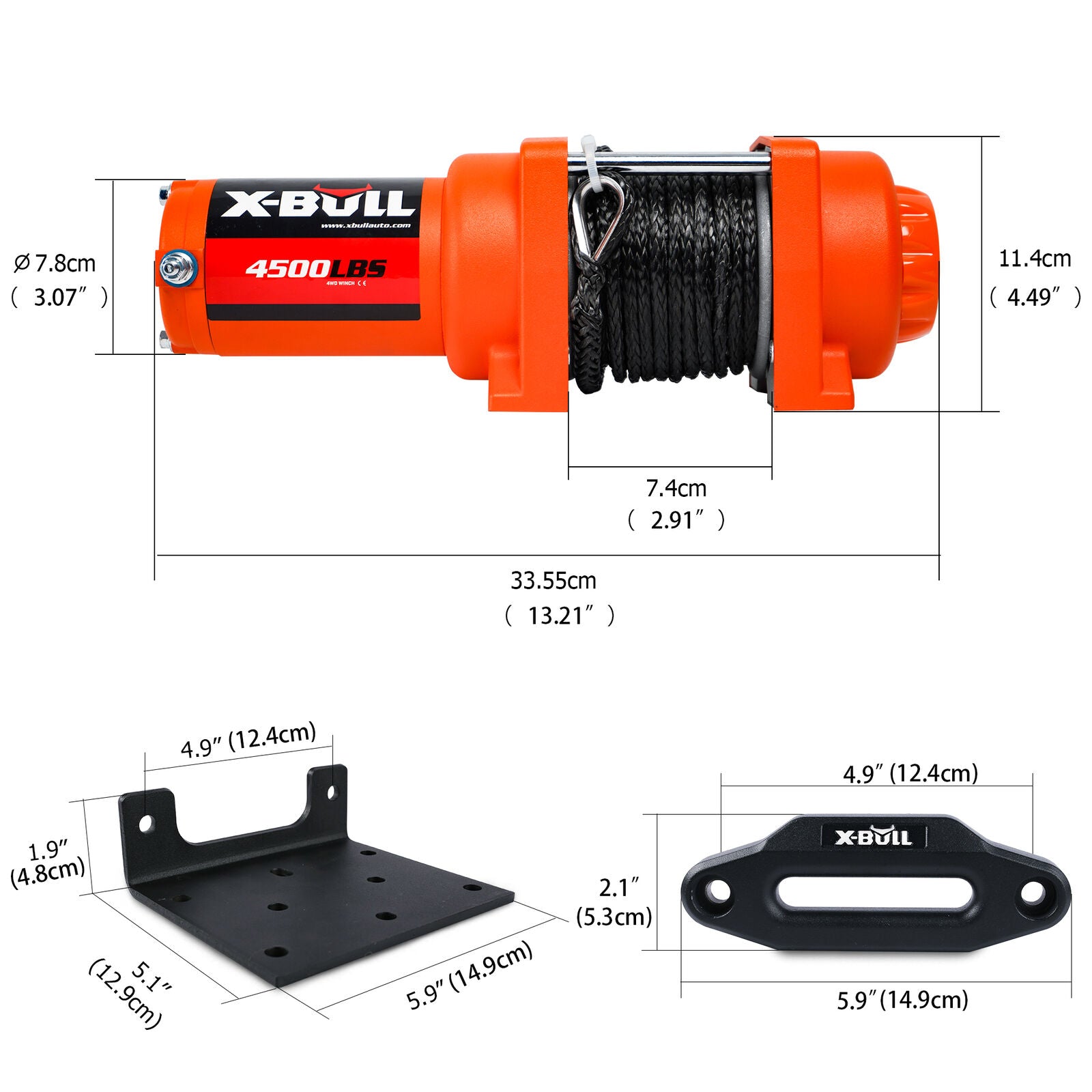

Overall Dimensions(L X D X H): 13.3"x4.25"x 4.5"(338x108x114mm)

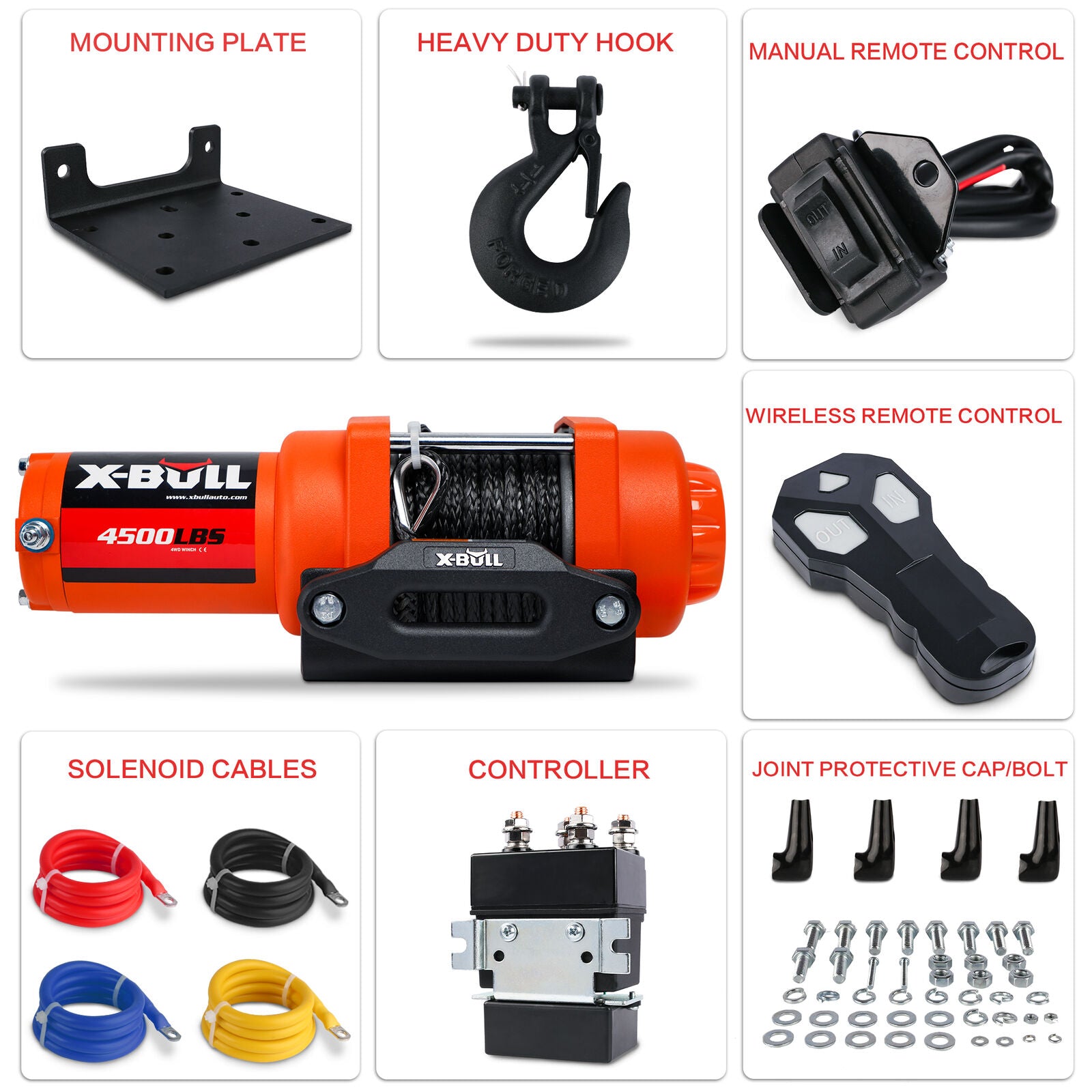

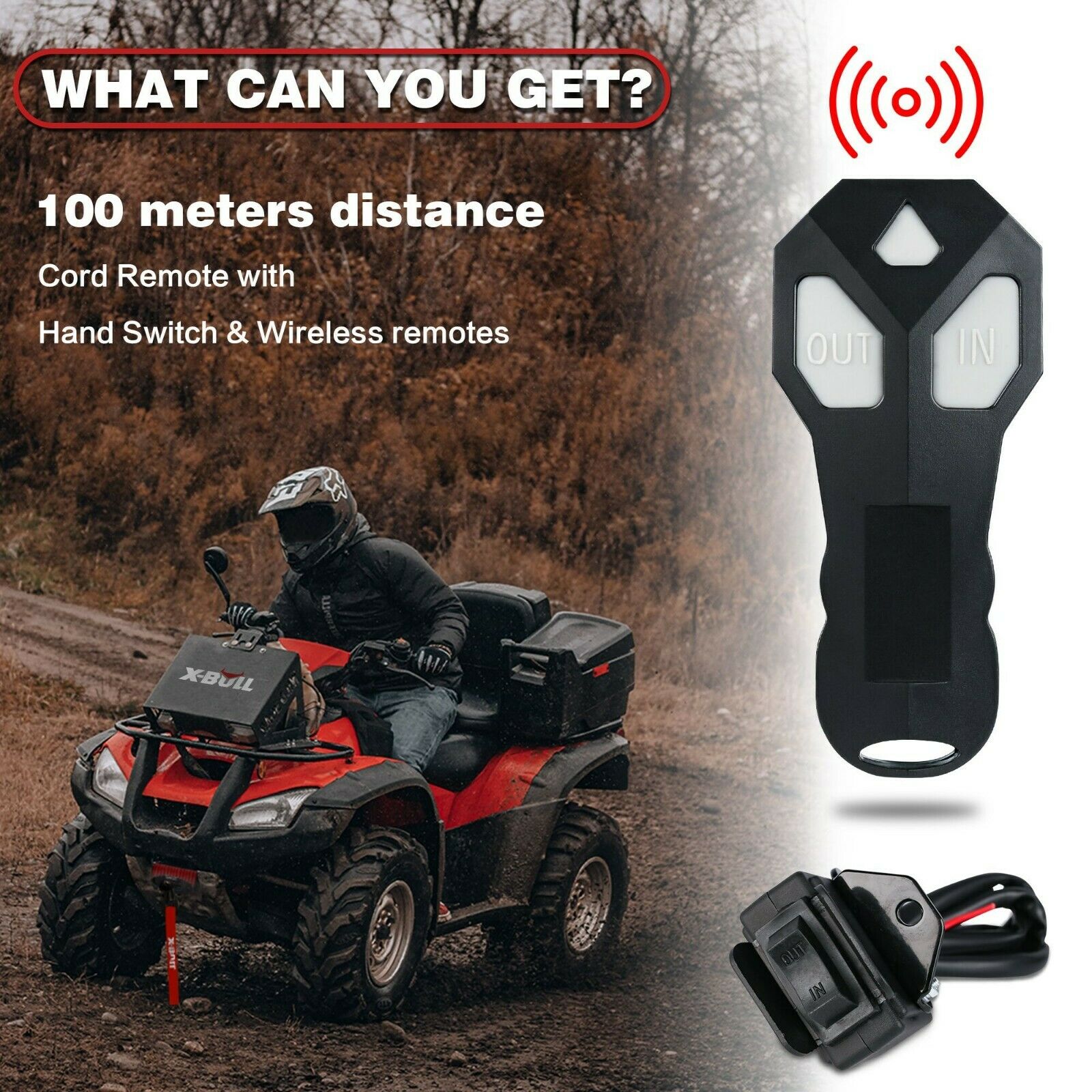

Remote Control: Wired, 12ft (3.7m) long
Battery Cables: 6 gauge, 6'(1.83m) long
Handlebar Controller: Wired, 8ft (2.4m) long
Solenoid Cables: 6 gauge, 3'(0.92m) long
Application:ATV/UTV
Mounting Pattern: 3"x4.88"(76.2mm x 124mm)

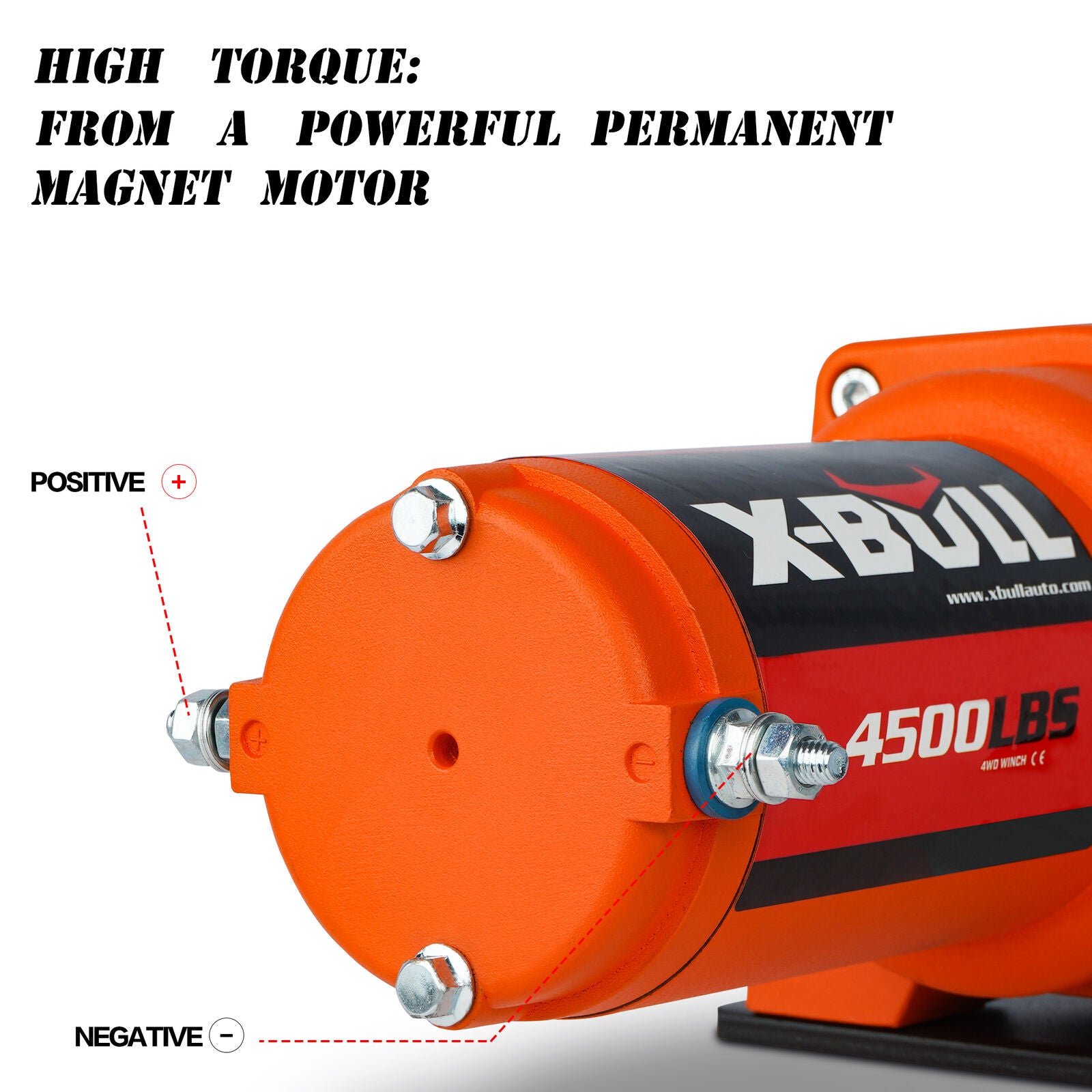

Motor:12V DC 1.9 HP Permanent Magnet
IP Rating: IP68-Winch and Controls(except remote switch,resistant to immersion up to 3')
Geartrain: 3-Stage Planetary
Power In & Power Out:Yes
Freespool: Cam ActivatedSound Rating: 85 dB
Hook:1/4" Clevis, with Spring-loaded Safety Latch
Weight:25lb(11.3kg)/21.6lb(9.8kg)
Brake: Auto. Load Holding Mechanical
Drum (Dia X L): 2'' x 2.9"(50mmx74mm)
